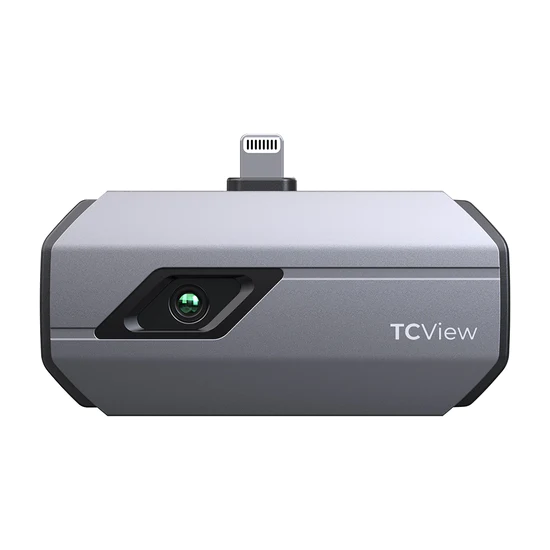

TC002 Thermal Imaging Camera
The TC002 thermal imaging camera is an advanced device specially designed for smartphones, offering remarkable accuracy in temperature detection, insulation inspection, and circuit board inspection.
With its impressive resolution of 256x192 pixels, the TC002 captures thermal images that are clear and detailed.
It provides a temperature detection range of ±3.6°F(2°C) with an accuracy level of 0.1°C.
Furthermore, its low power consumption of 0.35W allows for extended usage without worrying about battery life.
With its high heat sensitivity of 40mk, the TC002 can precisely detect temperature changes.
TC002 Thermal Imaging Camera Key Features
PRECISE ACCURACY, CLEAR VISUALS
The TC002 delivers clear and detailed thermal images of the target with its resolution of 256 x 192 pixels.
Its high accuracy and clarity make it perfect for situations where surface temperature is challenging to differentiate.
DESIGNED FOR PORTABILITY
Measuring just 2.8 inches by 1.65 inches by 0.55 inches and weighing a mere 30 grams, the TC002 is compact and lightweight.
Its portable design allows for easy pairing with iPhones and iPads, while its rugged aluminum case ensures protection against accidental drops, enabling temperature monitoring anywhere, anytime.
EXTENDED BATTERY LIFE, LOWER POWER CONSUMPTION
The TC002 connects to your iPhone or iPad and draws power directly from the device, eliminating the need for an additional power source.
With its low power consumption of 0.35W, the TC002 ensures longer battery life, providing 4-7 hours of usage on devices equipped with a 3000-5000mAh battery.
ENHANCED TEMPERATURE RANGE AND ACCURACY
With a broad temperature range of -4°F to 1022°F (-20°C to 550°C), the TC002 is suitable for temperature readings on various objects.
It also offers improved accuracy, with a variance of ±3.6°F (2°C) or 2% of the maximum temperature, and a temperature measurement accuracy of 0.1°F (0.1°C).
The TC002's precise temperature measurement capabilities make it an invaluable tool across different industries and applications.
It enables safe temperature readings from a distance, making it suitable for professionals such as home inspectors, HVAC technicians, electricians, automotive technicians, and even farmers monitoring crops and livestock.
ENHANCED THERMAL IMAGING
Three Temperature-Reading Dimensions: The TC002 App allows users to manually select from three different dimensions to check the temperature: Point, Line (with highest and lowest readings), and Surface (with highest and lowest readings).
Multiple Color Palettes: With 11 unique color palettes, the TC002 enables users to customize the temperature display with their preferred gradient colors.
Image Enhancement: Users can adjust the sharpness and contrast of the thermal image to achieve a personalized view.
ADJUSTABLE TEMPERATURE RANGE
Featuring a DIY temperature range feature, the TC002 allows users to set maximum and minimum temperature limits.
When the object temperature exceeds these limits, the camera displays corresponding color images, facilitating a better understanding and visualization of the target area's temperature.
INTUITIVE AND GRAPHICAL WAVEFORM
The TC002 thermal camera can continuously take temperature readings and store the data in its accompanying app.
This data can be used to calculate the high, low, and average temperatures of objects within its field of view over a specific period, enabling users to visualize the data through a waveform graph.
- Spectral Range: 8-14μm
- Resolution: 256×192 Pixels
- Pixel Size: 12μm
- NETD: <40mK @25°C
- Frame Rate: 25Hz
- Object Temperature Range: -4°F to 150°F (-20°C to 550°C)
- Accuracy: Maximum Temperature Variance of 2°C, down to 0.1°C
- Weight: 30g
- Dimensions: 2.8 x 1.65 x 0.55 inches (71 x 42 x 14mm)
- Cable Length: 19.69 inches (50cm)
- Operating Systems: Compatible with iPhone & iPad
- TC002 Thermal Imaging Camera
- Carrying Bag
- Multifunctional Adapter Cable
- Package Box
- Quick User Guide
- Cleaning Cloth
